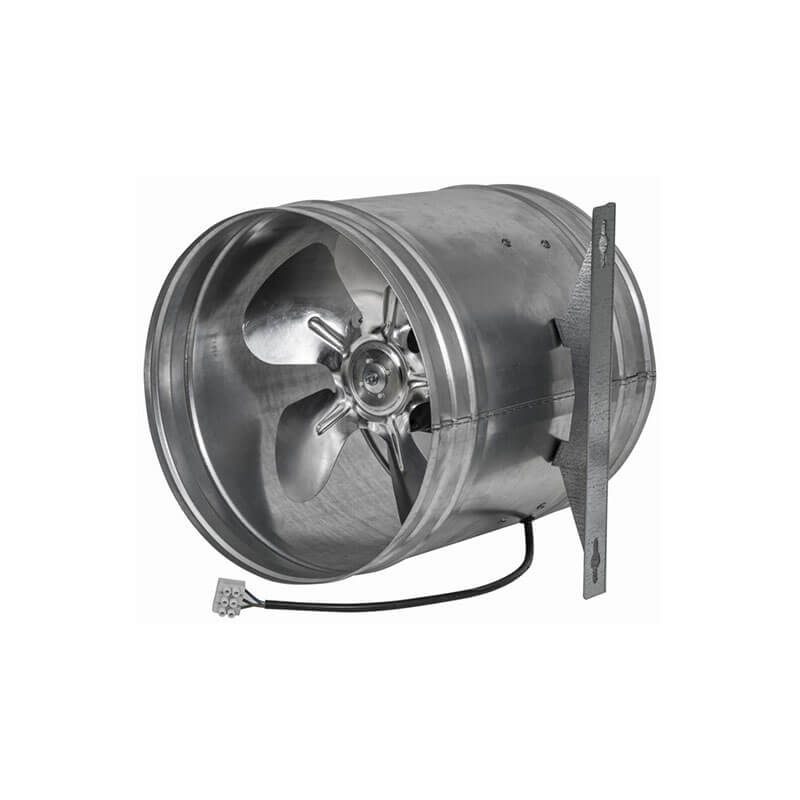

Europlast duct low-pressure fan Ø160, Ø200, Ø250, Ø315

Description

Europlast industrial low pressure duct fan.

• Galvanised metal housing.
• Speed control capability if you get the Europlast AR 1.5 (optional) electronic speed controller.
• It can be placed in any position, indoors, in all types of ducts: metal, flexible, plastic, etc.
• The mounting base is included.
• Operating temperature range from 0 °C to 40 °C.
• IPX4
• 230V-50Hz single phase.

Not suitable for contaminated air, volatile or explosive gases!

Technical specifications

ZKM160:

183 m3/h, 21W

ZKM200:

340 m3/h, 29W

ZKM250:

800 m3/h, 70W

ZKM315:

1325 m3/h, 110W
